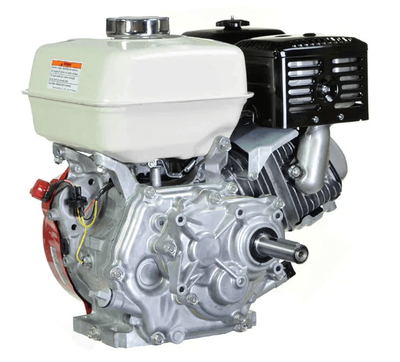

Honda’s GX series air cooled 4 stroke OHV horizontal shaft engines deliver solid reliable power and performance in a compact, lightweight design with an optimized layout of cylinder, air cleaner, muffler and fuel tank for easy installation into a wide range of equipment.

Consistent easy starting thanks to Honda’s automatic mechanical decompressor and hot-sparking transistorized ignition.

FEATURES -

GX270, 9HP max
Engine is easy starting OHV design
6:1 reduction box, ideal for spray pumps
Output shaft runs @ 660 rpm max
Max net torque 17.7Nm @ 2500rpm
1” keyed shaft
Bore x Stroke – 77 x 58
Displacement 270cm³
Compression ratio 8.2:1
PTO Shaft Rotation - Counter-clockwise (from P.T.O. side)
Cast iron bore
Pull start
6L fuel capacity
Fuel consumption; 2.5L/hour @3600rpm
Oil capacity 1.1ltr
Dimensions (LxWxH); 380x430x410mm
Weight 25kg

Price includes GST and delivery NZ wide
