Why is my Bricksaw having motor problems?

Possible symptoms:

• Capacitors overheating or failing

• Motor running excessively hot

• Reduced motor performance

• Excessive heat building up around the windings

Possible Consequences :

• Paint on the motor casing baking off from excessive heat

• Exposed metal subsequently becoming susceptible to rust

• Armature damage or burning

• Premature motor failure

The 30-Metre Lead Problem - it's in the van - why not use it?

Have you seen the 30-metre extension lead, with the remaining length coiled up beside the work area or plugged into a multi-box, and another extension....... even when the power source is only 8 or 9 metres away?

This results in a long and often undersized electrical pathway between the power source and the bricksaw, creating a voltage drop in an undersized cable.

A Small Investment to Protect a Big One

The right power supply when it comes to brick cutting is just as important as having a good Bricksaw. The heavy-duty extension lead allowing electrical current to flow with less resistance, makes a big difference to the performance, reliability and working life of your equipment.

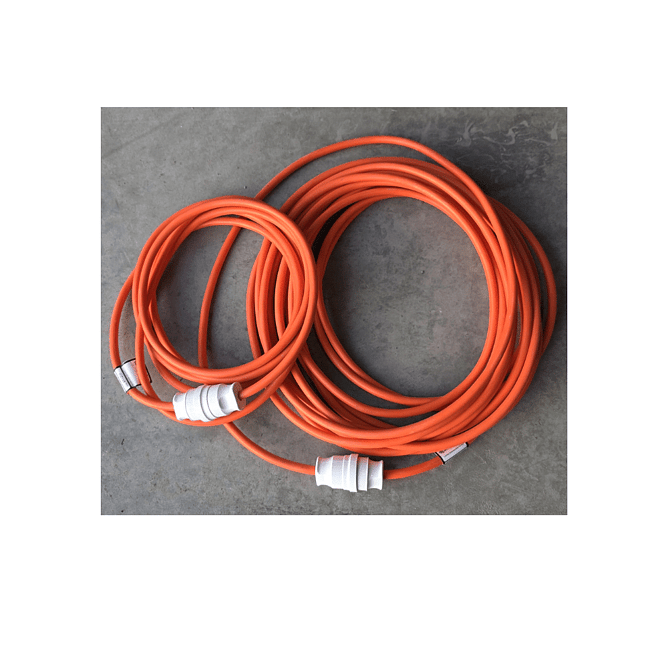

Summit Heavy Duty Extension Lead Set - A dedicated Bricksaw extension lead using 2.5 mm² copper cable, fitted with 10-amp plugs, and supplied in two separate sections: a 5-metre lead and a 15-metre lead.  https://www.summittools.co.nz/shop/product/936587/summit-heavy-duty-extension-lead-set/

The idea is simple: use only as much lead as you actually need.

• Arrive on site and your power source is close to the cutting area - Use the 5-metre section.

• Need a little more reach - Use the 15-metre section.

• Need maximum reach - Connect the two together and you have 20 metres.

• This gives you three practical options from one setup: 5 metres → 15 metres → 20 metres

REMEMBER - Don't let your extension lead become the weak link between your power supply and your bricksaw.

• Shorter Is Better - one of the most important things to remember when powering a high-load tool is: The shorter the lead you can use, the less voltage drop you are likely to experience. Keep the cable run as short as practical.

• Every extra metre of cable adds resistance to the electrical circuit. Combine excessive length with an undersized cable and you can create unnecessary voltage drop and additional stress on the motor. Avoid unnecessary joins and multiboxes.

• Using a correctly sized lead, give your bricksaw the best opportunity to receive the power it needs. Use the correct cable size.

Summit Tools — Heavy Duty Extension Lead Set - Built to deliver the power where you need it - https://www.summittools.co.nz/shop/product/936587/summit-heavy-duty-extension-lead-set/
